Elevate Your Inflight Experience with Precision Engineered Sound

The Elevate® audio system was designed to recreate the same experience in the VIP cabin that one has in their home theater. With up to 10 channels in and out, each with its own 9 band EQ, the amplifier system produces high resolution audio, from 20 Hz to 20kHz.

Elevate - Designed to deliver exceptional audio performance

The Elevate Audio Amplifier system boasts impressive capability for a variety of audio applications:

• Advanced Amplification: Using a Full Matrix Class D amplifier with DSP control, delivering efficient power and precise audio processing.
• Input/Output: each fully populated Universal Docking Station (UDS) manages up to 10 inputs and 10 outputs
• Detailed Sound Control: Finely tuned sound with 9 band digital equalization for each channel
• Adaptable Power: both AC to DC and DC to DC power magazines are available.  The magazine converts available aircraft power to a clean, stable regulated DC source, allowing clean, precise sound.
• Scalable: Each UDS can hold up to 5 amplifier magazines.  Additional UDS can be installed to tailor the audio system to any cabin size, from a single zone business jet to a multi-zone VVIP aircraft.  Each amplifier magazine can be individually configured to deliver:
  • 2 channels at up to 95 watts per channel
    • Up to 2 speakers may be wired to any channel in parallel, allowing up to 45 watts per speaker, 2 speakers per channel
  • 1 channel at up to 200 watts
    • Parallel Bridge-Tied Load (PBTL) mode to drive a sub-woofer

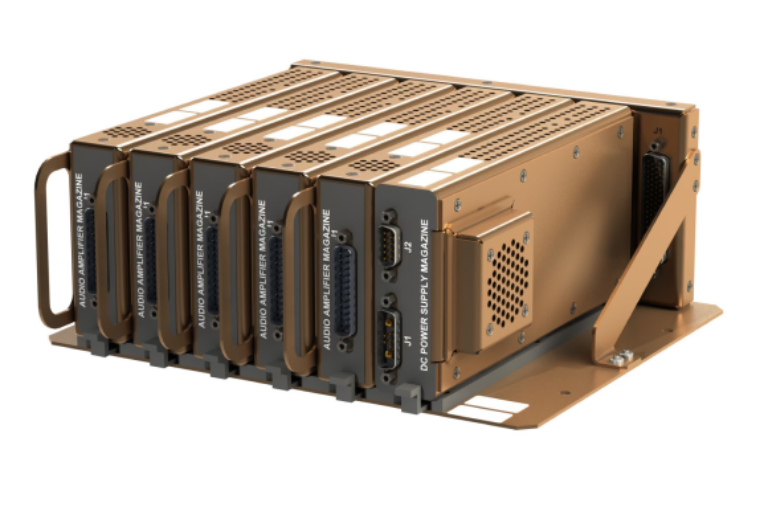

The Elevate® amplifier system consists of 3 different components, which can be scaled to fit any cabin, from a single zone business jet to a multizone VIP aircraft

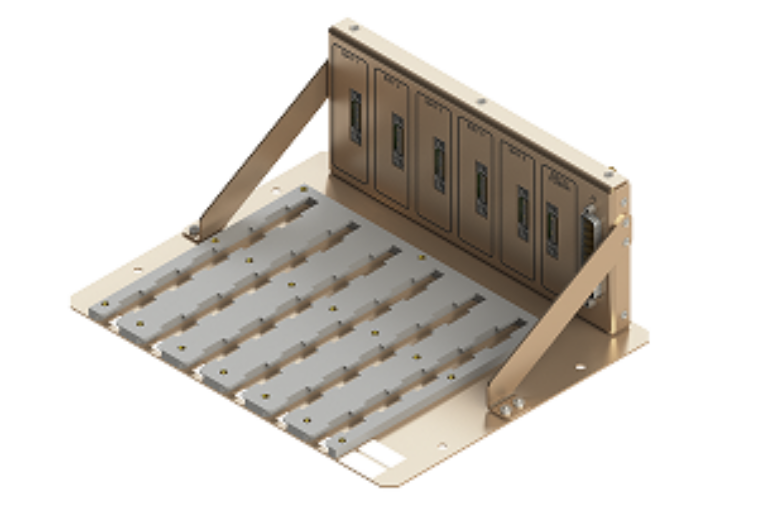

• The Universal Docking Station (UDS) has 6 slots for magazines.  One slot is dedicated to a power magazine, while the other 5 are populated anywhere from 1 up to 5 amplifier magazines.

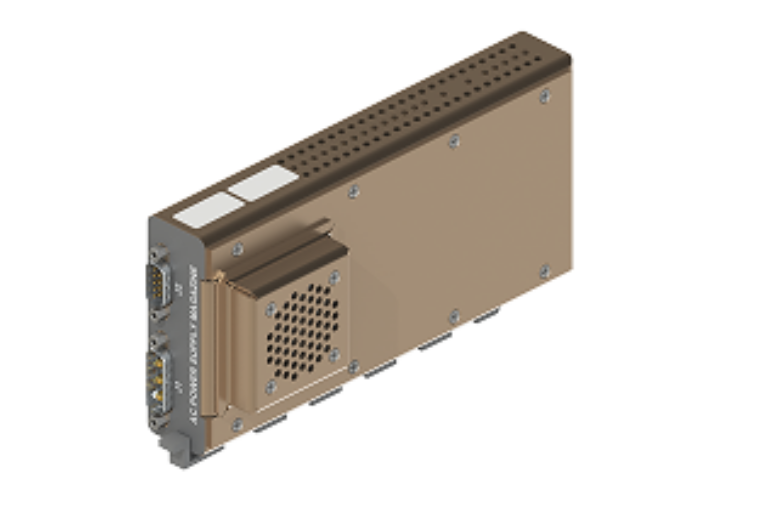

• Power Magazine: The power magazine comes in 2 versions, AC to DC, and DC to DC.
  • The power magazine is designed to receive power from the aircraft bus, and convert it to clean, ripple free DC, which is critical to producing clean audio.
• Amplifier Magazine:  a single amplifier magazine can be configured as either a single channel, or dual channel amplifier.
  • When configured for dual channel, each magazine can deliver up to 95 watts of power for mid and high range speakers, per channel.
  • When configured for PBTL, each magazine can deliver a single channel of up to 200 watts of power to drive a subwoofer.
