The Elevate ® amplifier system can be scaled to fit any cabin, from a single zone business jet to a multizone VVIP aircraft. It handles up to 10 channels of audio in, and 10 channels of audio out, with a 9 band digital EQ per channel. The system scales as small or large as needed. Add additional populated docking stations to expand the number of zones/speakers/subwoofers in the cabin.

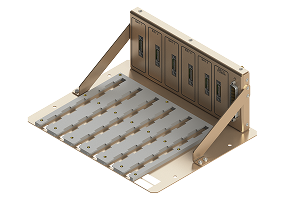

The Universal Docking Station acts as the main hub for the amplifier system. The modular design will fit both Alternating Current (AC) and Direct Current (DC) cabins; simply pair it with the correct power supply magazine. Each UDS has 5 slots for amplifier magazines, which can be populated in any combination.

The DC to DC Power Supply Magazine is used to power the Elevate Audio System. This magazine brings in, filters, and boosts aircraft power so the Universal Docking Station is consistently provided with a clean 28VDC power supply which is optimum for the highest quality audio system. The unit is also equipped with a secondary DC input line which acts as the essential power supply to power the PA functions of the amplifier.  If the unit is only powered with essential power, the entertainment audio will be forced to a mute state and the unit will operate at minimum power to reduce the load on the aircraft battery bus.

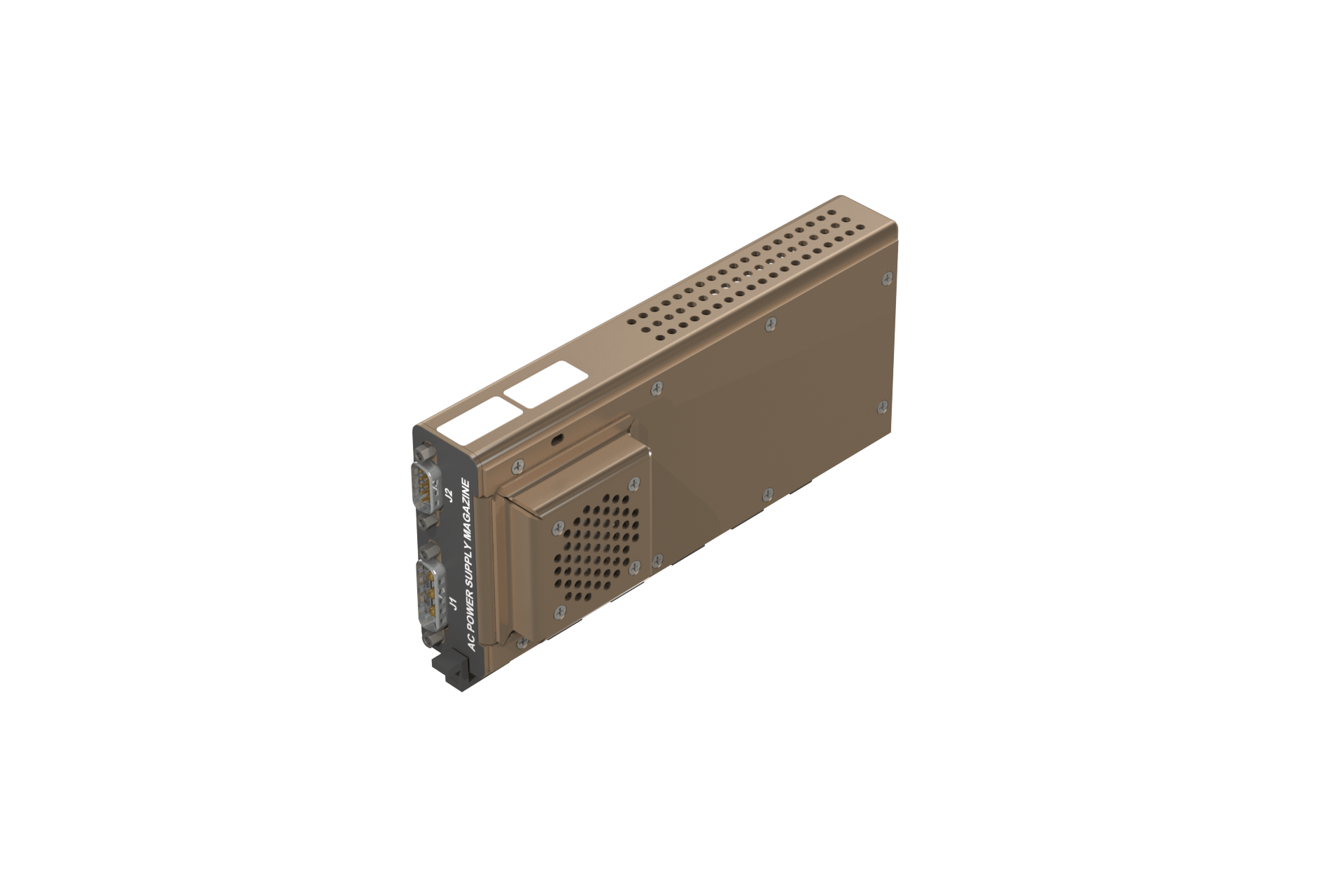

The AC to DC Power Supply Magazine is used to power the Elevate Audio System. This magazine brings in, filters, and boosts aircraft power so the Universal Docking Station is consistently provided with a clean 28VDC power supply which is optimum for the highest quality audio system. The AC power supply supports variable frequency from 400Hz to 800Hz input. The unit is also equipped with a secondary DC input line which acts as the essential power supply to power the PA functions of the amplifier.  If the unit is only powered with essential power, the entertainment audio will be forced to a mute state and the unit will operate at minimum power to lessen the load on the aircraft battery bus.

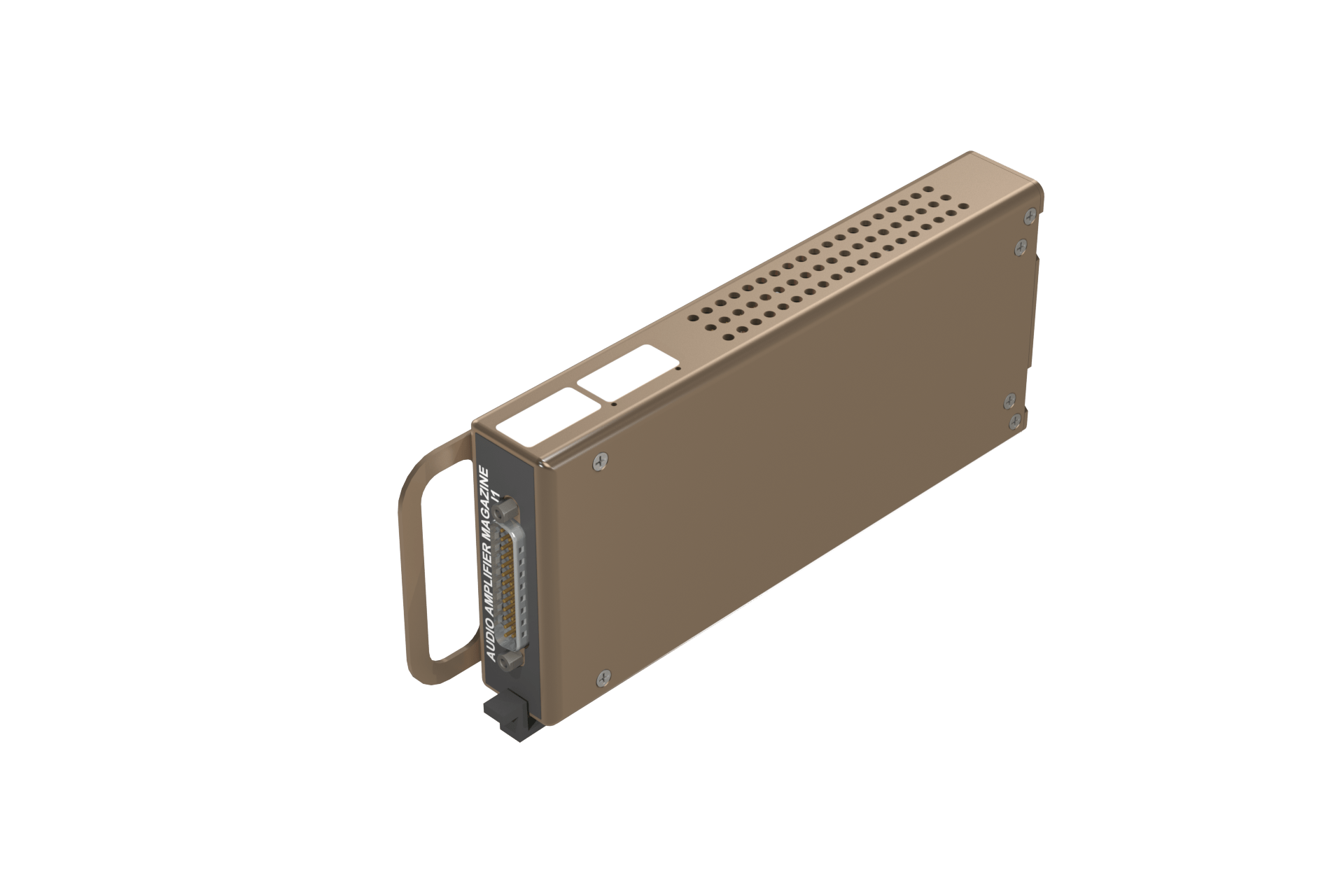

The audio Class D amplifier card can be configured to provide the following outputs: 1 channel at up to 200 watts of power in bridge mode 2 channels at up to 95 watts of power each

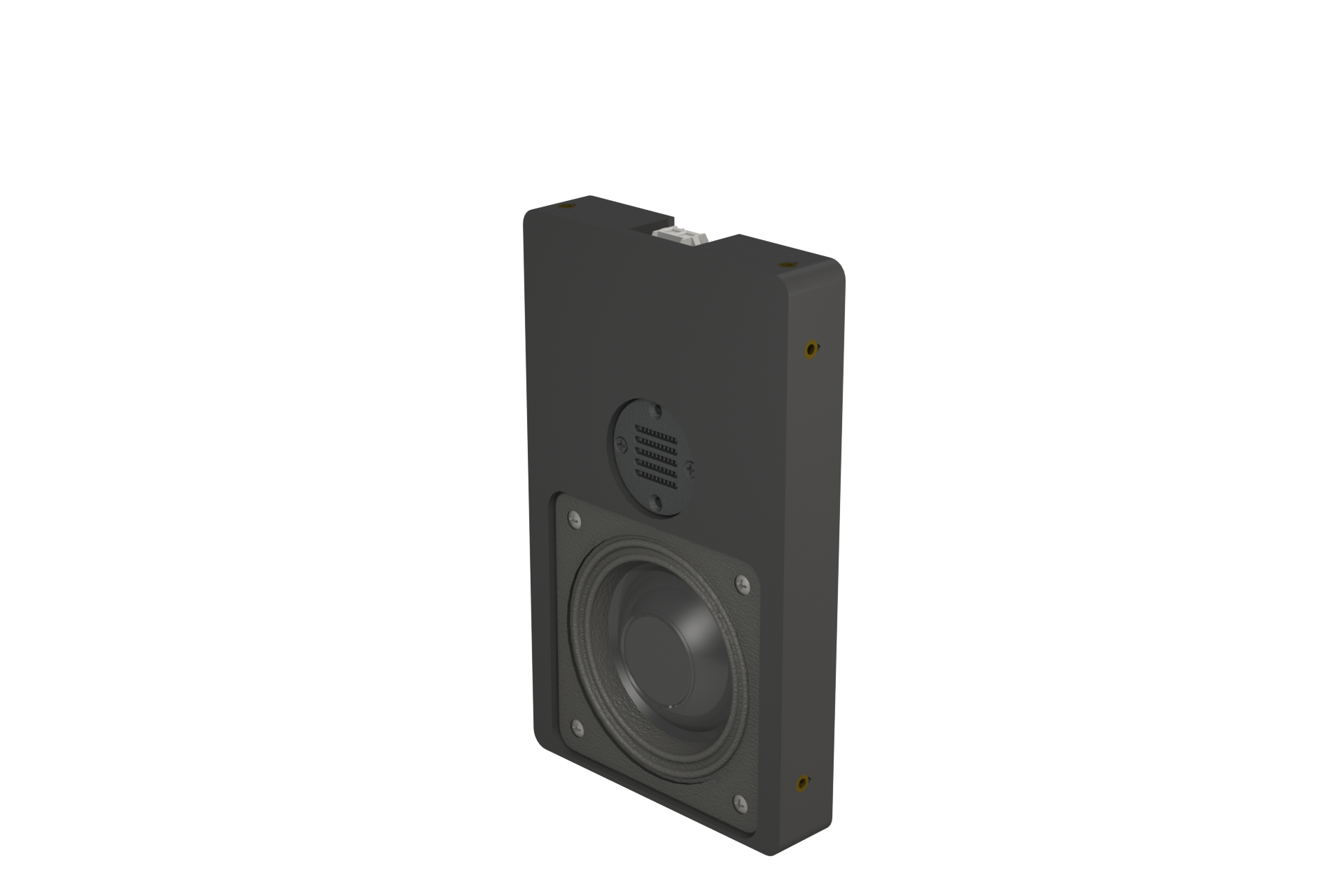

The Mid Range Speaker uses a 4-inch aluminum cone woofer for clear mid-range sound. It also has a special tweeter (air motion tweeter) for crisp high frequencies.

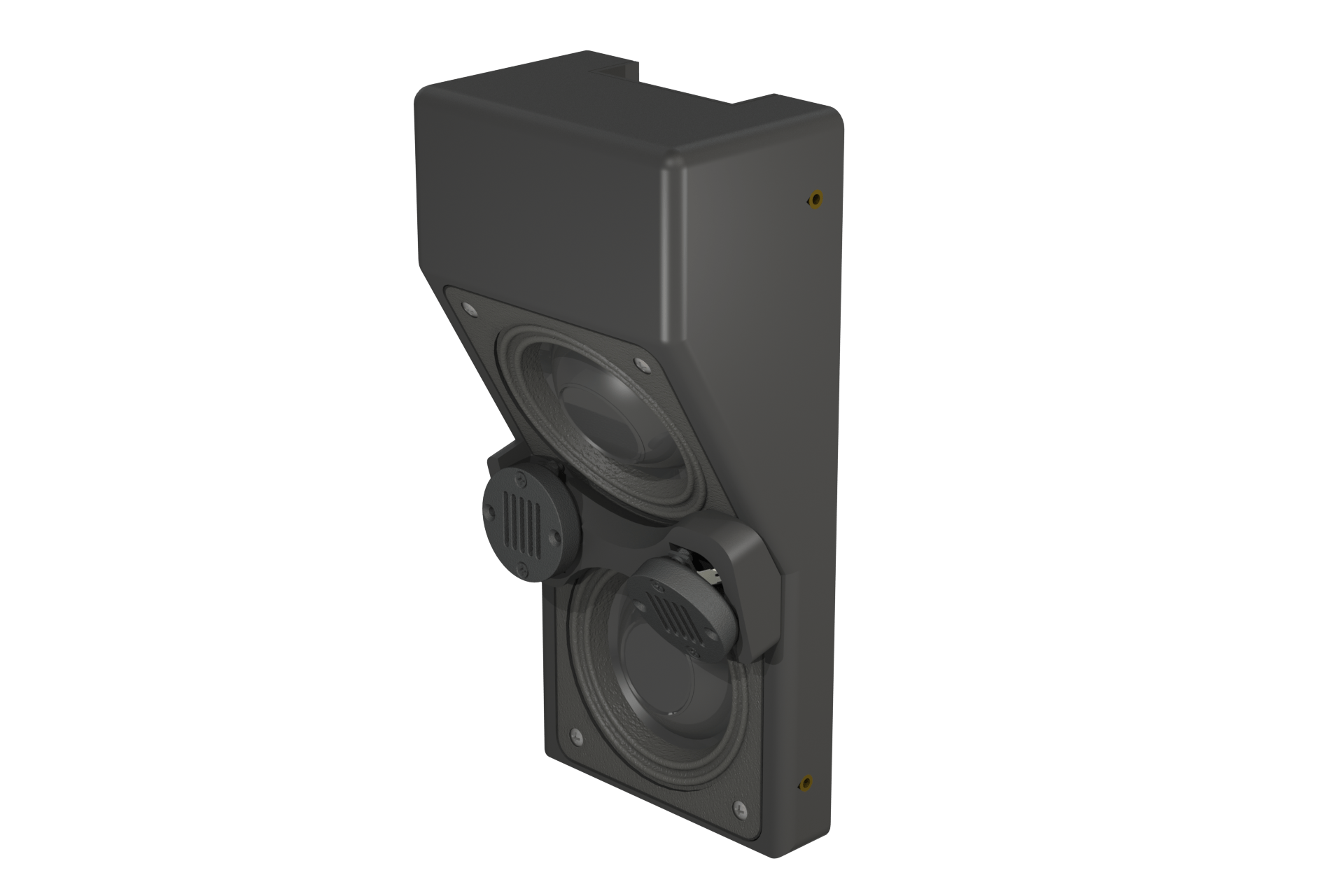

The Bi-Directional Speaker provides the capability for true Dolby ATMOS sound when coupled with a Dolby Processor. The Mid-range bi-directional speaker connector J1 accepts forward and downward analog audio signals.

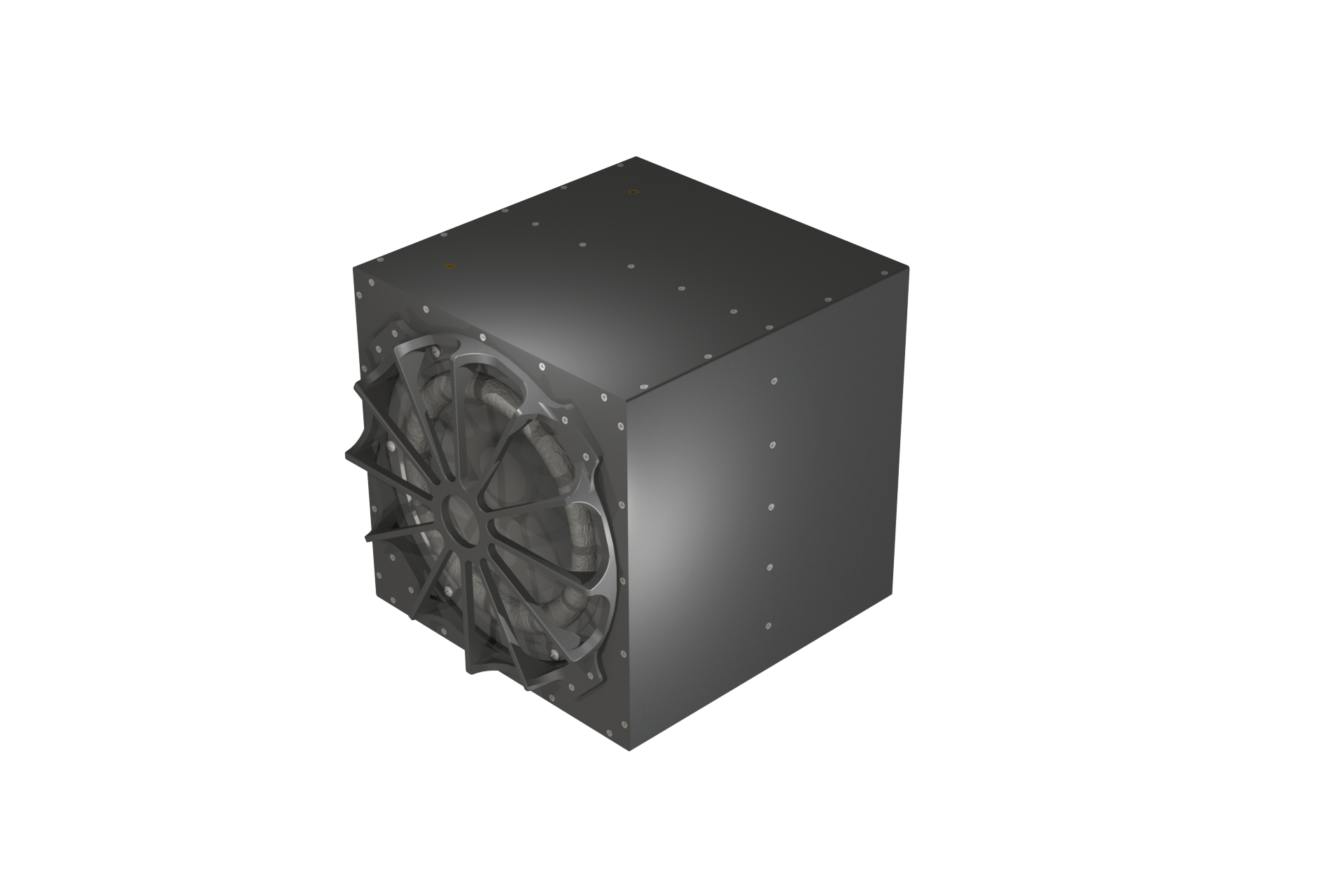

The Subwoofer 8in is a lightweight, high power, bass reflex subwoofer module designed for placement in most luxury seat bases, divans, bulkheads, sidewalls, or cabinet.

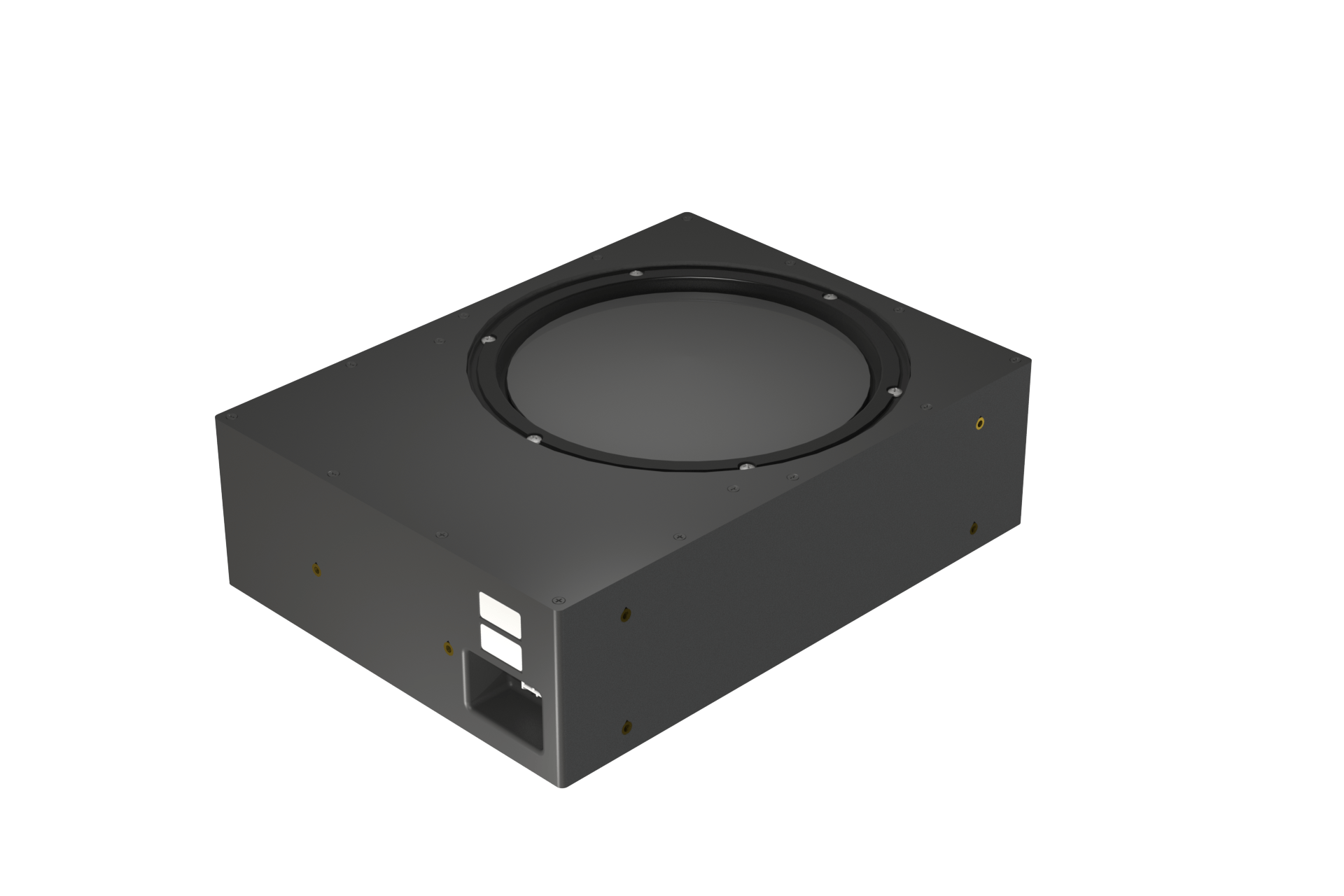

The Low-Profile Subwoofer 8in is designed as a form and fit replacement for the Alto ASW-514® Subwoofer.

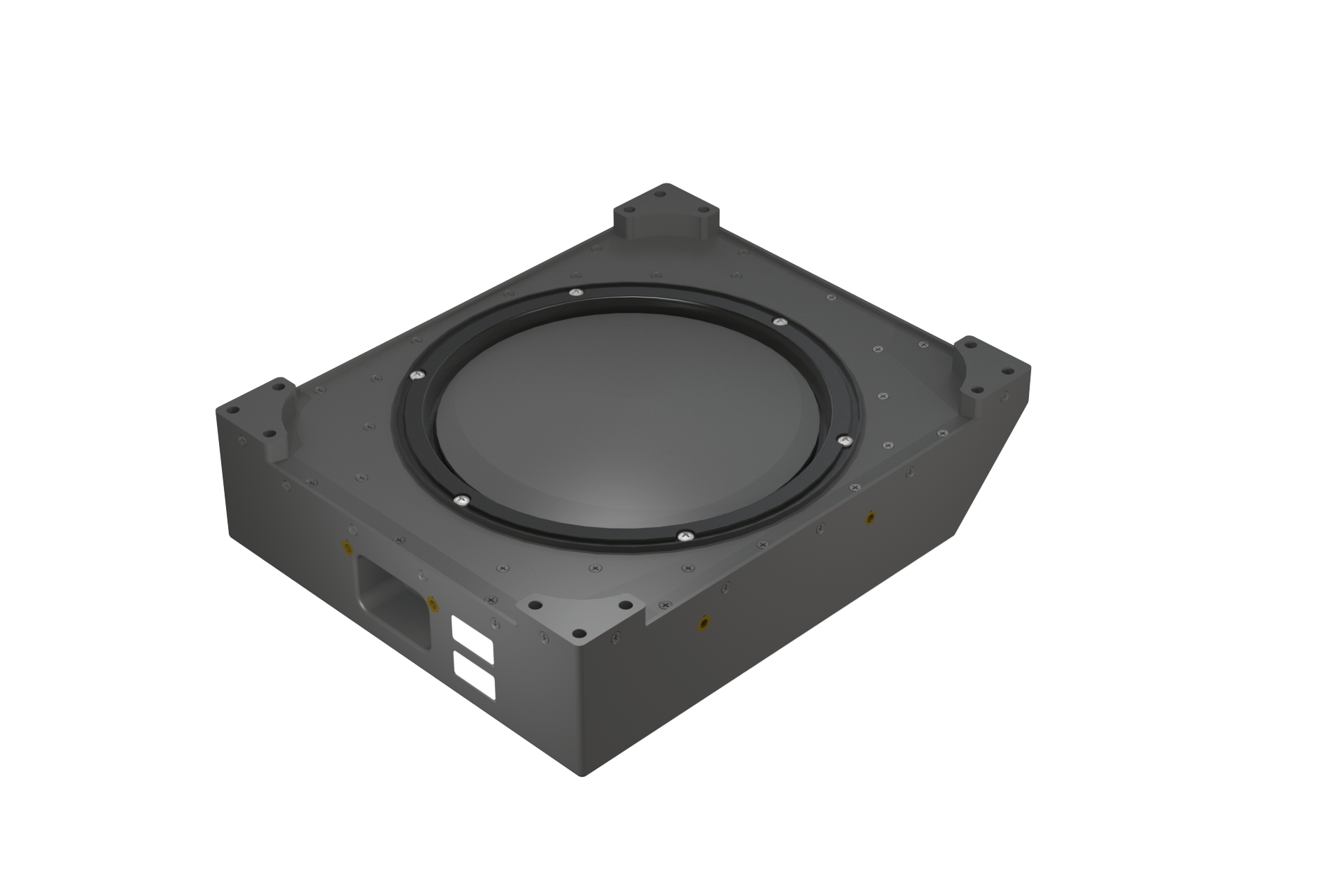

The Under Seat Subwoofer 8in is designed as a form and fit replacement for the existing DT Subwoofers installed on an assortment of aircraft.
