The Cabin Management Unit (CMU) is a powerful control center and is designed to communicate wirelessly with devices connected to Switch Panels and remote-mount switches. It has the following I/O interfaces: 14 Relay switches, 24 DI IN, 1 chime output, 2 RS-485, 1 RS-232, ARINC429 (3) RX and (1) TX, and 4 variable references.

The Evolve Cabin Management Unit (CMU) is a powerful control center with multiple wireless radios, 2-10K digital pots, 2-100 ohm digital pots, 1 chime output, 24 high sides switches, 8 low Side Switches, 16 discrete inputs, 2 RS-485, 1 RS-232, 2 Can bus, and 4 variable voltage outputs.

Available sizes: 3.5”, 3.8”, 4.3”, 5”, and 7” Each panel is fully customizable. Requiring only power, ground and chassis ground, every panel includes an integrated 915MHz radio, allowing wireless integration with the rest of the cabin.

Available configurations: 1x1, 1x2, 1x3, 1x4, 1x5, 2x3, 3x2. Each switch button can be customized for color, icon, and function. Requiring only power, ground and chassis ground, every panel includes an integrated 915MHz radio, allowing wireless integration with the rest of the cabin.

Application: bulkheads/monuments that are too thin to mount a standard button switch panel. These switches move the processor and other electronics down the harness, allowing for mounting where others won’t fit. Available configurations: 1x1, 1x2, 1x3, 1x4, 1x5, 2x3, 3x2. Each switch button can be customized for color, icon, and function. Requiring only power, ground and chassis ground, every panel includes an integrated 915MHz radio, allowing wireless integration with the rest of the cabin.

The CMS Dual Motor Controller is the hidden force behind the most seamless cabin experiences. From whisper‑smooth window shades to effortlessly gliding tables and displays, it delivers flawless motion with uncompromising reliability. • Drives one, two, or sequential motors with ease • Ultra‑quiet micro‑stepping for a serene cabin environment

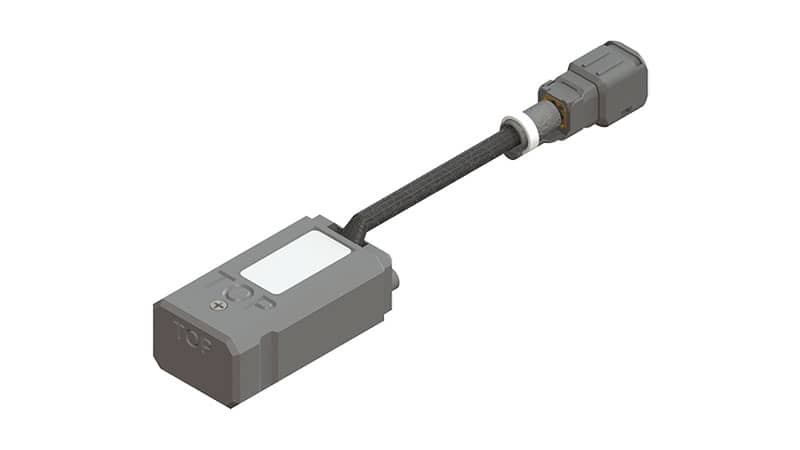

Use to control any dongle when a touch button switch or panel are not local.

Add I/O expansion to any switch, touch panel, or CMU/CMU-CR. 4 Hi side FETs 2 Low side FETs 2 pass through discretes in

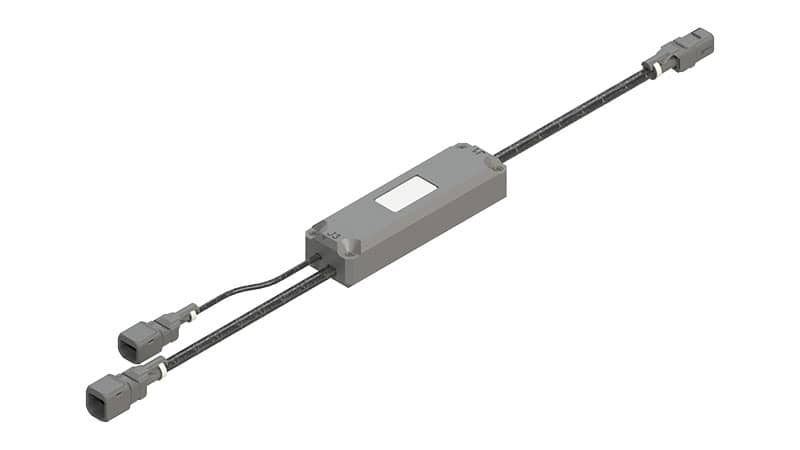

Add I/O expansion to any switch, touch panel, or CMU/CMU-CR. 2 separately controlled relays (2A rating) 2 pass through discretes in

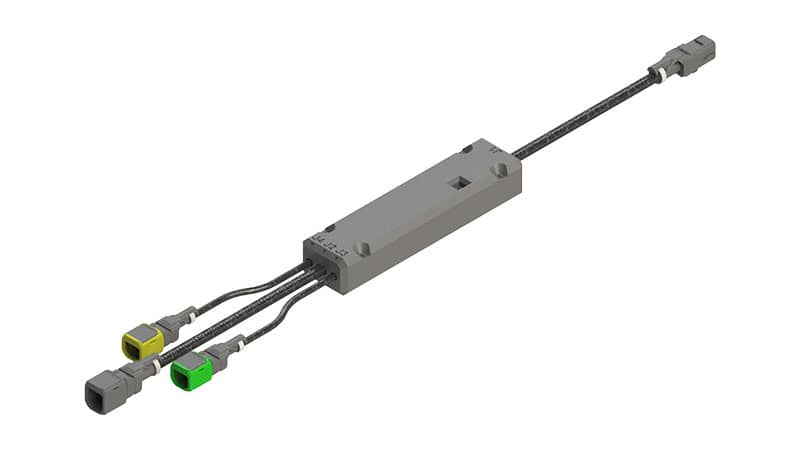

Add I/O expansion to any switch, touch panel, or CMU/CMU-CR. 6 low side FETs 2 pass through discretes in

One (or more) potentiometer dongle can be added on to any switch, touch panel, or CMU/CMU-CR to add variable resistance where needed for cabin temperature control, variable DC lighting, etc. Available options: 100Ω, 1kΩ, 1.2kΩ, 2kΩ, 2.5kΩ, 5kΩ, and 10kΩ

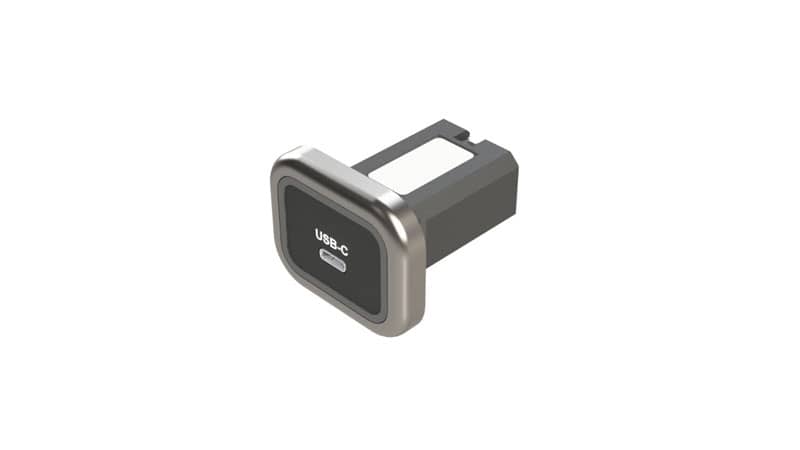

Stand alone USB-C charging port. Input voltage: 22 - 32 VDC. Output: 40 watts.
