The CMS Explore Moving Map brings real‑time flight awareness and immersive passenger engagement to the cabin. Powered by aircraft navigation and air data inputs, it delivers dynamic maps, flight information, and customizable content across multiple displays. Key Highlights: • Flexible Video Outputs: Up to four independent feeds, including NTSC (480p), 3G‑SDI (1080p), and HDMI (4K UHD). • Seamless Data Integration: Reads from ARINC 429 data buses with intelligent priority handling of FMS, ADC, IRS, and GPS inputs. • Cabin Connectivity: RS‑485, RS‑232, Ethernet, USB, and CMS’s patented RF wireless for control, maintenance, and data loading. • Passenger Experience: Real‑time maps, multilingual flight data, custom graphics, safety briefings, and interactive world maps. • Audio & I/O: Dual independent audio streams with stereo, mono, and S/PDIF surround outputs, plus 14 configurable inputs and 4 outputs for cockpit and cabin integration.

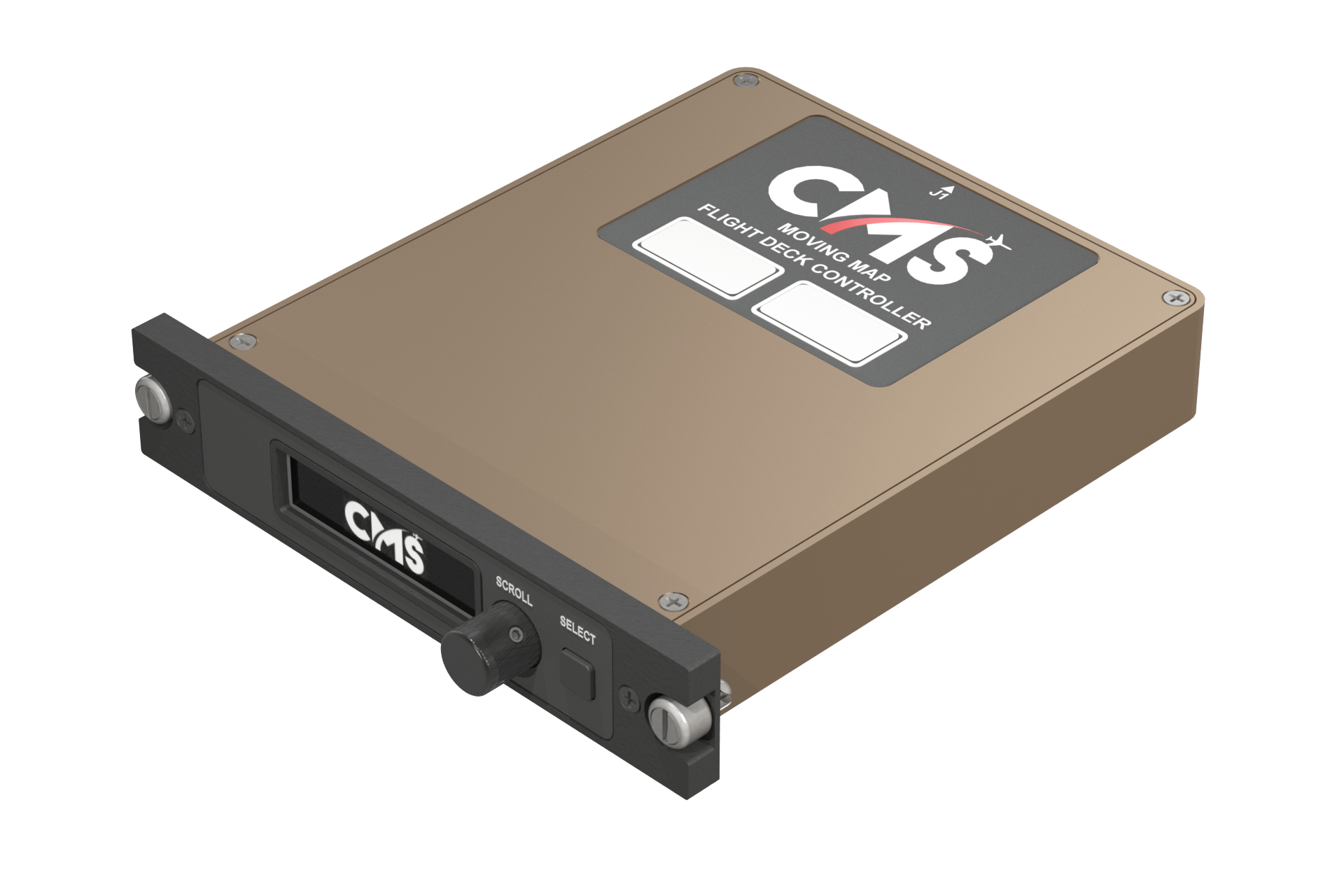

The ECC is recommended for every Explore Moving Map installation. It is used to monitor and change various customer requested features from the cockpit, including: Time to destination (TTD) Greenwich Mean Time (GMT) Destination Airport Mode display Languages Audio briefings/announcements The ECC is also used to control audio briefings and cabin announcements.

The Flange Mount Installation Tray is a pre-designed and certified mounting plate. This kit will secure to the Explore Moving Map based unit and allow the unit to be installed in the same aircraft mounting location as the previously removed Airshow® 400 or Airshow® Genesys Flange Mount Unit

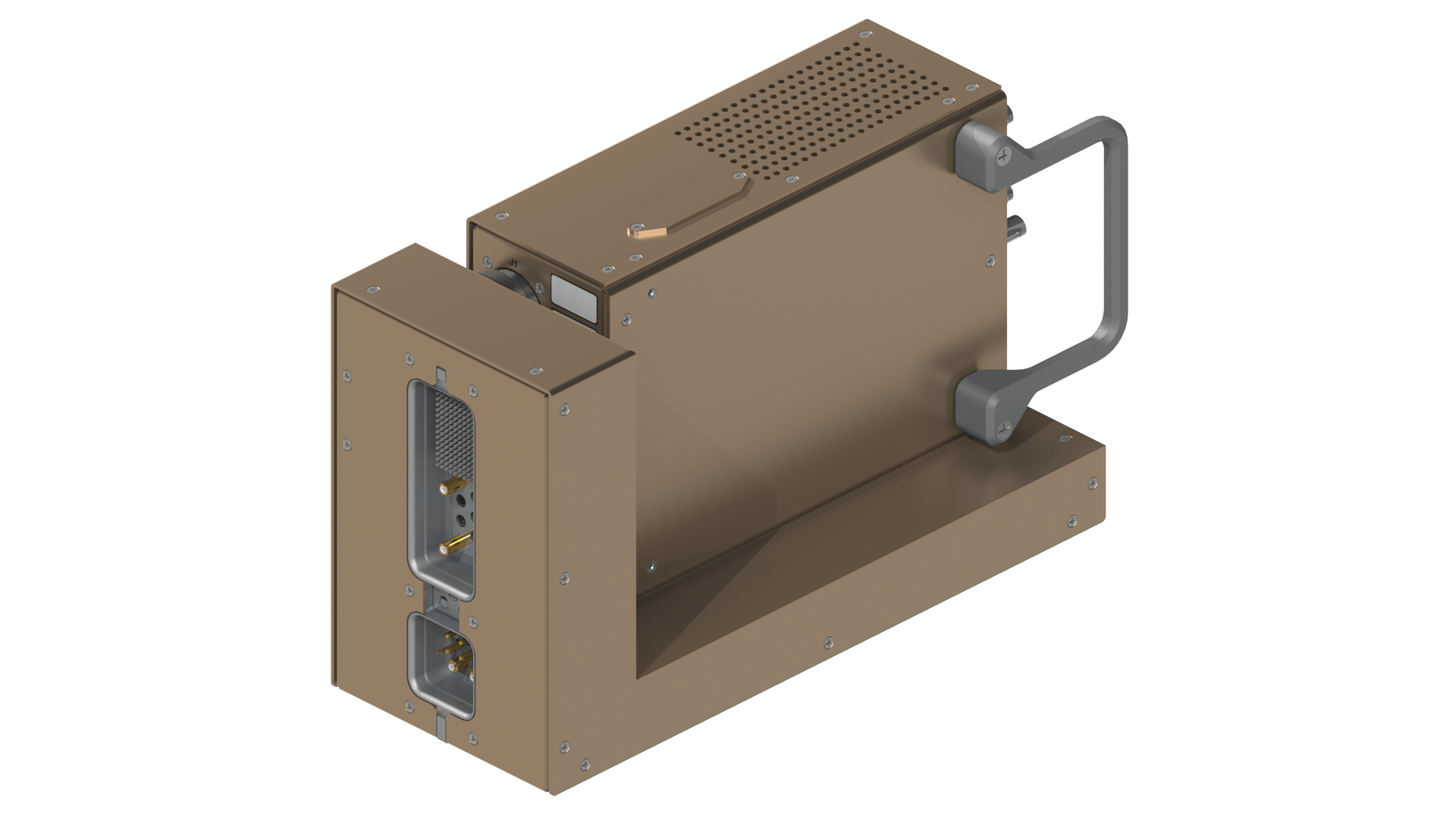

The ½ ATR Mount Installation Trays are specifically designed to mount the new Explore Moving Map unit and pass the required signals from the LRUs circular mil connectors to the various Arinc 404A aircraft side connectors. This allows for a seamless drop into any previously installed ½ ATR Mounted Moving Map Installation.

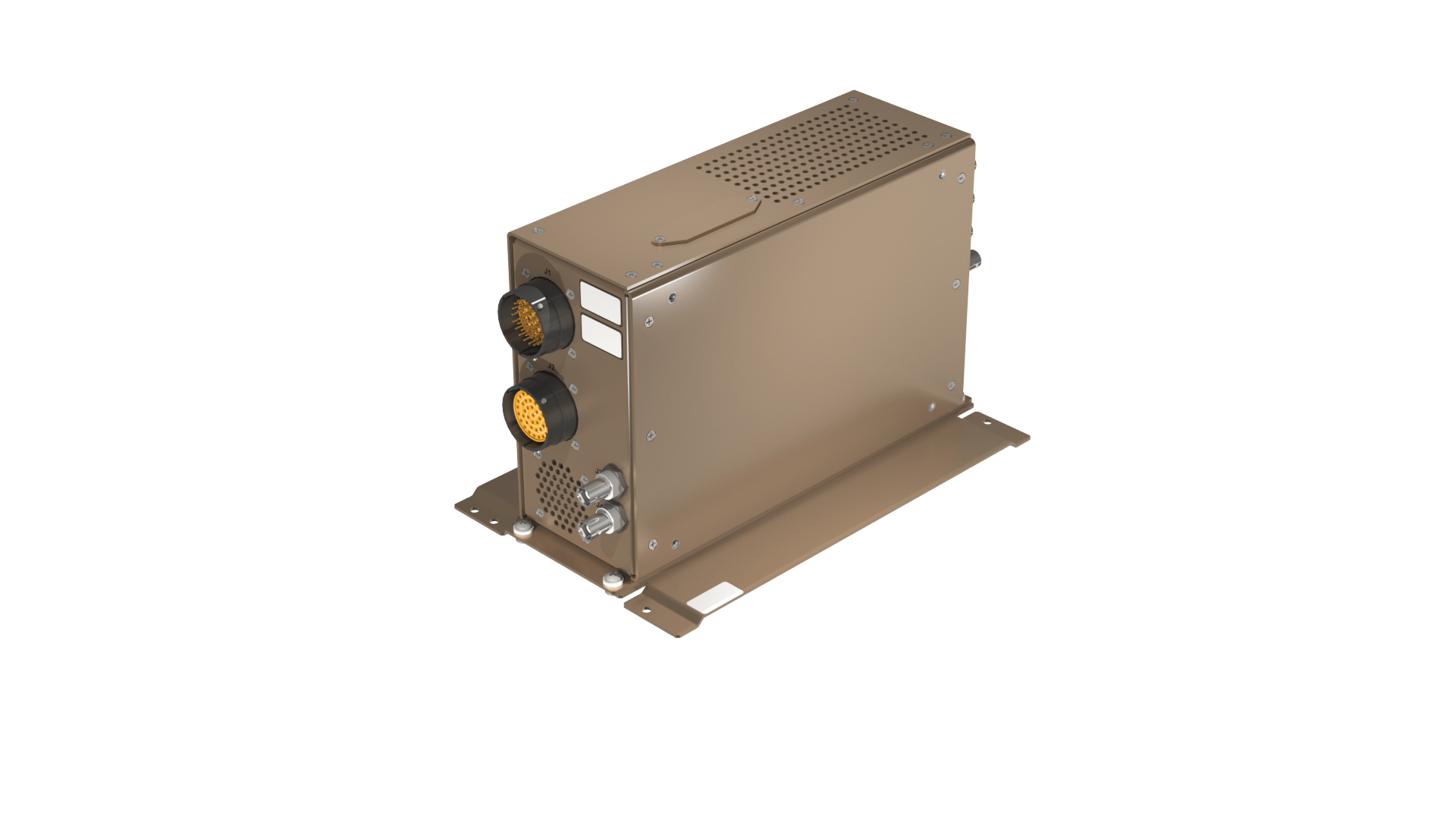

The 4 MCU Mount Installation Tray is specifically designed to mount the Explore Moving Map Unit and pass the required signals from the LRU’s circular mil connectors to the Arinc 600 aircraft side connector. This allows for a drop in installation for any previously installed Airshow 4000®.
